Power Dynamics

PDA-S804A 8-channel Mixer

From 0 Customer
499,30 € 469,99 €
You save 5% Delivery time: 4 - 6 workdays
Top features
  • Multimedia: Bluetooth receiver and USB port with a MP3 player
  • Perfect mixing: connection possibilites for microphones, line equipment and effect-producing devices
  • Optimal effects: 24-bit multi-FX processor with 2 x 99 presets
Shipping costs: from 0,00 €
The item is ready to ship and will be shipped immediately after receipt of payment.

You may change your order at any time.

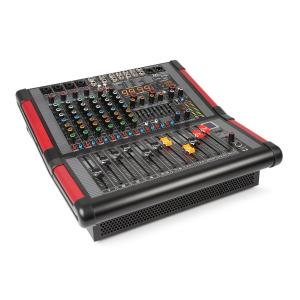

PDA-S804A 8-channel Mixer with an Integrated Amplifier (2x350 RMS)

The Power Dynamics PDM-S804A is a compact and professional 8-channel stage mixer with a built-in 2 x 350W RMS amplifier that delivers great sound and a wide range for your next set. The mixer has a Bluetooth receiver as well as a USB port with a MP3 player and offers various connection possibilities for microphones, line equipment and effect-producing devices. It also comes with a built-in digital 24-bit multi-FX processor with 2 x 99 presets for the perfect sound effects. A 9-band equalizer also ensures the optimum sound control of all output signals at all times. The +48 V phantom power with individual preamplifiers for each channel also allows condenser and ribbon microphones to be easily connected.

Whether on a big stage or at home: the Power Dynamics PDM-S804A 8-channel stage mixer with its diverse applications makes you want to professionally mix  musical experiments.

User manual PDF

Product details

Top features:

  • Compact and powerful: 8-channel stage mixer with a integrated 2 x 350 RMS amplifier
  • Multimedia: Bluetooth receiver and USB port with a MP3 player
  • Perfect mixing: connection possibilites for microphones, line equipment and effect-producing devices
  • Optimal effects: 24-bit multi-FX processor with 2 x 99 presets
  • Studio-ready: +48 V phantom feed for use with condenser and ribbon microphones

Properties:

  • Connections: 1 x USB port, 4 x XLR microphone input / 4 x 6.3 mm jack line input combi, 2 x 6.3 mm jack insert input, 2 x stereo RCA line input , 1 x XLR microphone output, 1 x 6.3mm jack line output, 1 x 6.3mm jack AUX send-return port, 1 x 6.3mm jack room output, 1 x 6.3mm jack PKR output, 1 x 6.3mm jack headphone output
  • USB port with a MP3 player and a digital display
  • Bluetooth receiver for audio streaming
  • +48V phantom power with a preamplifier per channel
  • 75 Hz low cut filter per channel
  • AUX send per channel
  • Solo switch per channel (PFL)
  • Mute switch per channel
  • DSP: 24-bit multi-FX processor with 2 x 99 presets
  • Integrated 2 x 350 W RMS amplifier
  • 9-band equalizer
  • LED VU meter
  • Peak LED
  • THD: <0.01%
  • Frequency response: 10 Hz - 45 kHz (± 3dB)
  • Output signal: 700 W max
  • Output Level: +/- 1V
  • Input: Line: +/- 150 mV
  • Input: Micro: +/- 1.5 mV
  • Power supply: 220-240 VAC | 50/60 Hz

Scope of delivery:

  • 1 x device
  • Operating manual in English (other languages: German, Dutch, Spanish, French, Polish)

Dimensions:

  • Dimensions: approx. 41.5 x 16.6 x 42.5 cm (WxHxD)
  • Weight: about 12 kg
