171.830 UHF Wireless Microphone Headset & Receiver

The Citronic 171.830 is a smart UHF wireless microphone system that meets all the practical demands of the professional user.

The wireless UHF microphone set can be kept all in perfect order with its own protective case. Jack and XLR outputs allow the system to be used in a wide variety of technical situations.

With a transmission range of up to 60 metres the system gives the user freedom to move around larger stages and venues - invaluable for any public performance.

The headset microphone supplied opens up a wider range of applications with greater freedom of movement around large stages and venues. The integrated squelch control helps to make sure you get the best sound from the radio microphone set.

A wireless microphone is included in the set as well as a receiver that works with almost any other UHF microphone.

The Citronic 171.830 features excellent technical characteristics with its 16 selectable UHF channels that eliminate the possibility of interference from other devices for optimal performance.

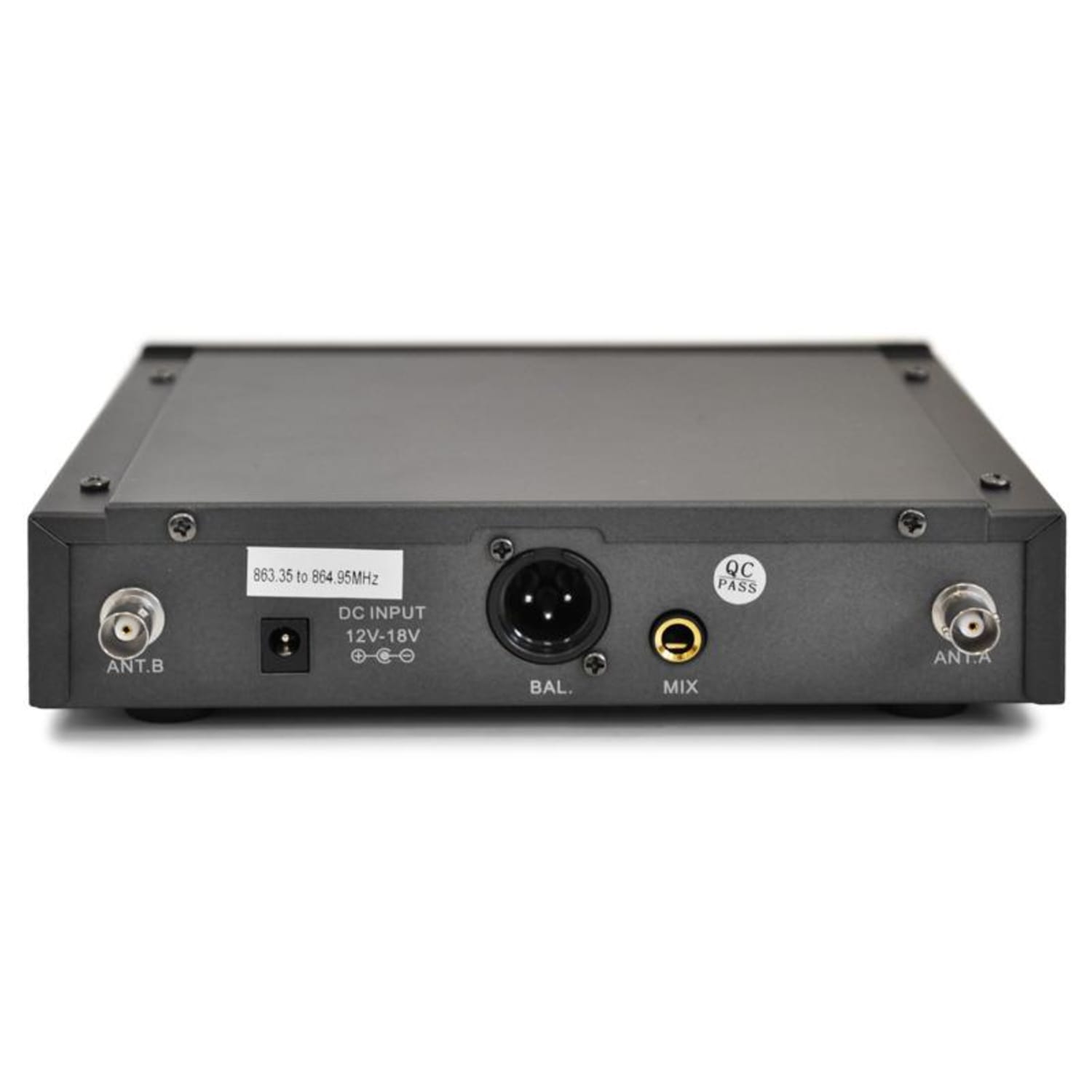

• Receiver connections: 1 x XLR output, 1 x 6.3mm jack output
• Belt pack connections: 2 x Connections for antenna
• Transmitter connections: 3.5mm jack
• Transmission frequencies: UHF – 863.5 to 864.95MHz
• Digital PLL tuner on receiver with automatic microphone sync
• Adjustable volume
• LCD display with channel number and frequency
• On/off switch, volume adjustment and mute for microphone via belt pack
• THD: 0.5%
• Signal to noise ratio: >105dB
• Receiver power supply: 14.5V/500mA adapter
• Belt pack power supply: 2 x AA batteries (included)

• 20 x 4.5 x 16cm (W x H x D; receiver)
• Receiver weight: 400g
• Microphone weight: 190g
• Compatible with 19" (48cm) rack case – 1U
